上期回顧：

本綜述回顧了CT血管造影術的演變，從其發展和早期挑戰到成熟産品，提供對于心血管疾病發現和治療獨有的視野。

本期内容：

CTA的起源，初期的瓶頸以及解決的方法

CTA的起源

Emergence of Angiography

CT血管造影（CTA）得以實現的主要技術支持是在1990年臨床上引入了螺旋(6) (7)掃描，标志着進入容積CT時代。它的主要貢獻是取代了“步進掃描”（step and shoot）的采集模式。該模式是在一次橫斷位圖像采集的時候，掃描床是靜止的，而在下一次機架旋轉重啟掃描前，掃描床前移至下一個掃描位置。螺旋掃描是在掃描床進動中連續采集，可在單位時間内覆蓋更大的掃描範圍。

The primary enabling technology for CT angiography was the clinical introduction of spiral (6) or helical (7) scanning in1990, which ushered in the era of volumetric CT. Its key contribution was the replacement of the “step and shoot” acquisition mode, in which the table wasstatic during the acquisition of a single transverse section and subsequently advanced to the next scan position before gantry rotation resumed, with continuous acquisition of projections during table travel that allowed coverage of muchlarger volumes per unit time.

其他方面的優勢是可以采集靜脈團注對比劑的首過（動脈期），當它流經特定的血管區域。在早期，床速受限于機架每轉的層厚，例如，機架每轉1秒，層厚3mm，則床速為3mm/秒。另一個限制就是X光球管熱容量，它限定毫安量（也因此噪聲增加），及掃描時間小于30秒，結果同樣的掃描參數下最大覆蓋範圍是9cm（8）。

Among other advantages, this permitted the capture of the first pass of anintravenous contrast agent bolus as it transited a particular vascular territory. In those early days, table speed was limited to the section thickness per gantry rotation; thus, for example, given a 1-second gantry rotation and 3-mm sections, table speed was 3 mm/sec. Another limitation wasx-ray tube heat capacity, limiting milliamperage (and, thereby, in- creasingnoise) and scan time to less than 30 seconds, resulting in a maxi- mum coverage with the same parameters of 9 cm (8).

第一篇描述CT血管造影（CTA）的文章發表在1992年11月的放射學（Radiology）雜志上(9,10)，并且展示了快速容積覆蓋與3D可視化的可能性。

The first articles describing CT angiography appeared in the November 1992edition of Radiology (9,10) and demonstrated the possibilities givenfast volume coverage and 3D visualization.

在1991年到1998年，由于單排螺旋CT的掃描速度限制了CTA進入到各個不同的血管領域。采用大于1的掃描螺距之前，一個層厚3mm，30秒的掃描，最大覆蓋的範圍是9cm，因此，限制了在頸外動脈（10）、Willis環（11），腎動脈（12，13）（圖 1a）及近端腹主動脈（13）中的早期應用。

From 1991 to 1998, single-detector row spiral CT technique limitedclinical CT angiography to discrete vascular territories. Prior to the introduction of scan pitch values greater than one, a scan with 3-mm nominalsection thickness provided a maximum of 9 cm table travel in 30 seconds andthus limited initial applications to the extracranial carotid arteries (10),the circle of Willis (11), the renal arteries (12,13)(Fig 1a), and the proximal abdominal aorta(13).

而3mm層厚是最多用于多平面重建（MPR）與3D容積再現（VR）重建，早期的CTA研究者能有效地利用螺旋CT5mm層厚重建的橫斷面圖像來評價中心肺動脈（14）與胸主動脈（15）。

While a nominal section thickness of 3 mm was considered maximal for thecreation of useful multiplanar reformations and 3D renderings, early CT angiography pioneers effectively used the primary transverse reconstructions from spiral CT acquisitions with 5 mm thickness to evaluate the central pulmonary arteries (14)and the thoracic aorta (15).

随着臨床引入1~2之間的掃描螺距(16)，最大的解剖覆蓋範圍增加了1倍，為擴大其臨床應用鋪平了道路，包括急性主動脈綜合征（AAS）的評價、創傷患者主動脈損傷的探查及制定動脈瘤治療計劃的關鍵環節-主動脈定性和定量分析。

With the clinical introduction of scan pitch values between one and two (16), maximal anatomic coverage doubled, paving the way for an expansion in clinicalapplications, to include assessments of acute aortic syndromes (AAS), the detection of aortic injury in trauma patients, and the qualitative and quantitative characterization of the aorta as key enablers for planning aneurysm therapy.

随着研究關注在CT血管造影（CTA）掃描技術和後處理的提升，新的CTA的臨床應用可以拓展到整個血管内腔、管壁以及終末器官的容積重建（14，17-22）。

While many investigations focused on the refinement of the techniques for CT angiogram acquisition and post-processing, new clinical insights were made possible by CT angiography’s ability to volumetrically resolve the entirety ofthe blood vessel lumen, wall, and end organ (14,17–22).

随着CTA臨床應用的潛力，行業尋求進一步（更大）容積覆蓋通過更快機架旋轉及每轉可采集更多層面的多排并行探測器的開發。

With the clinical potential for CT angiography established, the industry sought to further increase volume coverage through the development of scanners with faster gantry rotation and with multiple parallel detector rings that acquired more than one section per rotation.

1998年推出的早期多排探測器CT具有4排探測器和0.5s的旋轉時間，對于相同層厚，單位時間增加了8倍的容積覆蓋範圍（8，23）（圖 1b，1c）。

Early multi-detector row CT scanners introduced in 1998 had four detector rings and were capable of 1/2-second gantry rotations, effectively multiplying volume coverage per unit time 38 at the same section thickness (8,23)(Fig 1b, 1c).

15年後，今天多排探測器CT已經發展到320排探測器，機架旋轉時間最快達到270ms，并且在一些案例中雙源CT允許在最多數秒内，進行亞毫米各項同性的大範圍容積采集。

Fifteen years later, today's multi-detector CT scanners have up to 320 detector rings, gantry rotation times as low as 270 msec, and in some cases twox-ray sources, allowing sub-millimeter isotropic resolution to be acquired oververy large volumes in, at most, a few seconds.

快速容積覆蓋還能極大地減少對比劑的使用量，而無明顯的血管丢失（24）。

Faster volume coverage also allowed a sizable reduction in contrast media usage without loss in vascular conspicuity (24).

随着多排探測器CT進入（臨床），幾乎所有長軸方向覆蓋範圍的限制都消失了，為CT血管造影（CTA）在下肢動脈系統（25），全頭頸部血管系統（23），胸、腹主動脈系統（23），和上肢動脈（26）系統的成像鋪平了道路。

With the introduction of multi-detector CT, virtually all limits on longitudinal coverage disappeared, paving the way for CT angiography to beapplied to imaging the inflow and run-off of the lower extremity arterialsystem (25), the entire cervicocranial vascular system (23), thethoracoabdominal aortoiliac system (23), and the upper extremity arterial system (26).

到2002年，最後一個動脈系統-冠狀動脈成像依然存在問題。然而采用4排與8排CT的冠脈血管造影的概念驗證調查發表(27)，16排冠脈CT血管造影（CTA）進入臨床實踐，伴随64排CT在2005年誕生冠脈血管造影（CTA）成為了主流。

By the year 2002, there was but one final arterial frontier remaining—the coronary arteries. While proof-of-concept investigations of coronary CT angiography were published using four- and eight-row multi-detector CT scanners(27), the introduction of 16-row multidetector CT brought coronary CT angiography to clinical practice and with 64-row multi-detector CT in 2005 it became mainstream.

計算機與圖像後處理

Computersand Image Processing

高速的CT的飛速演變與摩爾定律保持一緻，它預示着晶體管集成化的密度大約每2年倍增。

The rapid evolution of fast CT scanners is congruent with Moore's law,which predicts the doubling of the density of transistors on integrated circuits approximately every 2 years.

除了影響采集電路系統，摩爾定律還适用于計算機性價比的快速增加，而沒有用于重建高分辨錐形束容積采集的費用和時間的增加，這由許許多多層面組成，這些是沒有臨床實用性的。

In addition to effecting the acquisition circuitry, Moore’s law is also responsible for the rapid increase in computer performance/price ratios,without which the expense and time to reconstruct these high-resolutioncone-beam volume acquisitions, consisting of hundreds to thousands of sections, would not be clinically practical.

摩爾定律也直接成為CT血管造影（CTA）最終臨床應用的推動者：因為一層接着一層的CTA圖像并不有效和直觀，可視化的CT血管造影包括表面遮蓋顯示，最大密度投影，和容積再現（VR）（圖1b，1c）。

Moore's law is also directly responsible for the final enabler of clinicalCT angiography: Because section-by-section inspection of CT angiographic imagesis neither efficient nor intuitive, visualization of CT angiography studies employs shaded surface displays, maximum intensity projections, and volume rendering (Fig 1b, 1c).

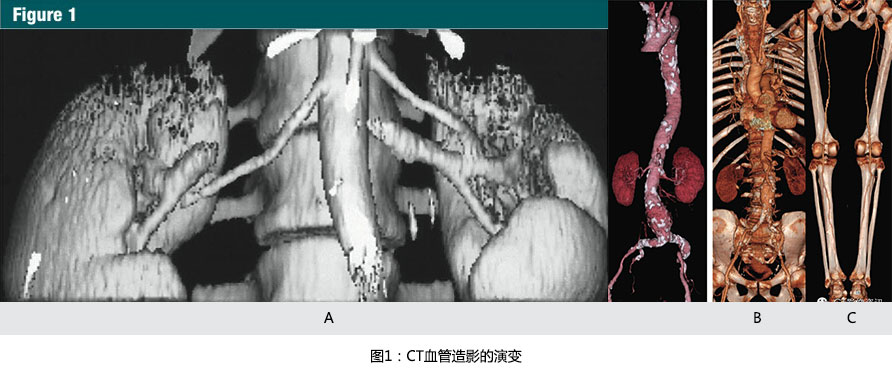

（A）：1991年12月獲得的腎動脈CT血管造影圖像。9厘米的縱向覆蓋，采用3mm的準直線束需要30秒螺旋掃描時間。當時，表面遮蓋技術是唯一的三維顯示手段。最大密度投影和容積再現成像需要在高度專業的計算機系統上進行脫機處理（參考文獻13）

（B）：随着1998年的四排螺旋CT的引進，使主動脈－髂動脈系統（從胸廓入口開始直到腹股溝）作為一個整體僅通過一次圖像采集并成像成為了可能。容積再現技術所展示的CTA圖像，使用4x2.5mm的螺旋掃描模式在28秒内掃描完成。圖片充分顯示了主－髂動脈鈣化和腹主動脈瘤（參考文獻8）

（C）：2001年使用容積再現技術展示的CTA圖像，使用16 x1.25毫米螺旋掃描模式，僅用了21秒的時間，就完成了從顱底至踝的動脈系統掃描，離1991年第一例螺旋CT的CTA成像隻隔了10年，但是CT的掃描速度則增加了近25倍。

然而，早期數據集僅包含數十層截面，每個所需的視圖方向需要很長時間在昂貴的工作站上來計算完成。

While early datasets consisted of only tens of cross-sections, each of themany desired view directions required many seconds to compute on expensive workstations.

今天，許多供應商都可以提供在廉價計算機上運行的軟件，基于數千幅增強CT斷層圖像的高級光影效果，這些軟件可以獲得交互式的高分辨率容積再現（VR），如自動去骨和曲面重建。

Today, many vendors provide software that runs on inexpensive computersand is capable of inter- active high-resolution volume rendering with advanced lighting effects based on thousands of contrast-enhanced CT sections withadditional capabilities such as automated bone removal and curved planar reformatting.

CTA數據分析已經發展成這種模式：先經專用的後處理解決方案進行定制的可視化和定量分析，然後再行橫斷面重建進行分析。

The analysis of CT angiographic datasets has evolved to the point where review of the transverse reconstructions is a secondary analysis to tailored visualization and quantitation tasks using application-specific post-processing solutions.
